激光透镜(聚焦镜)

激光透镜(聚焦镜)

时间:2021-10-11 类别:光学器件/晶体 关注:3946
新特光电生产各种高损伤阈值透镜,根据透镜的面型有包括平凸,双凸,平凹,双凹,弯月等等。透镜在光学系统中的作用分为三种:聚焦、耦合、准直。
产品经理
热线:181-6269-8939
QQ: 1651816816
微信:XTGD518
即刻询价

本公司生产各种高损伤阈值透镜,根据透镜的面型有包括平凸,双凸,平凹,双凹,弯月等等。透镜在光学系统中的作用分为三种:聚焦、耦合、准直。

  1. 聚焦镜片:聚焦镜被广泛用于激光加工(如:切割、打标、焊接、雕刻等)和各种激光系统中。

  2. 耦合透镜:一束激光要想用光纤传播,要把激光束通过镜片准直,聚焦到光纤内。

  3. 准直镜片:被用在光束传递系统中,以维持激光谐振腔和聚焦光学元件之间的光束的准直性。 广泛应用于激光打标机、激光切割机、激光焊接机、光纤切割机、手持焊接机等激光加工领域。

主要技术参数

材料 K9/石英 尺寸公差 +0.1/-0.1mm
厚度公差 ±0.1mm 焦距公差 ±2%@1064nm
光洁度 40/20 面型 λ/4@632.8nm
有效孔径 > 90% 平行度 £1’
镀膜 介质膜 侧边 < 0.2x45o

常用规格

直径mm 焦距mm 面型 激光波长nm
18 55/80/150 双凸 1050-108
20 30/35/40/50/60/70/80/100/120/150/200 平凸/双凸 1050-108
25 70/100/120/150 平凸/双凸 1050-108
15.4 70/100/120/150 平凸/双凸 1050-108
28 80/120 平凸 1064
30 40/50/60/70/75/90/100/120/150/200/250/300 平凸/双凸/弯月/组合 1064/694.3
34 80/100 平凸/双凸 1064
36 55/70/80/100/120/150/180/220 平凸/双凸/弯月/组合 1064/915/980
40 100/120/150/180/300 平凸/双凸/弯月 1050-180
41.5 80/100/120/150/180 双凸/弯月/组合 1050-180
42 80/120/200 双凸/弯月/组合 1050-180
50 100/120/150/180/200 双凸/弯月/组合 1050-180
50.8 150/250 平凸/双凸 1050-180

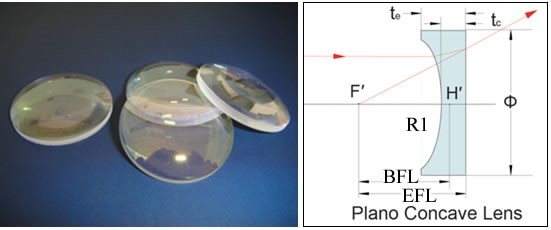

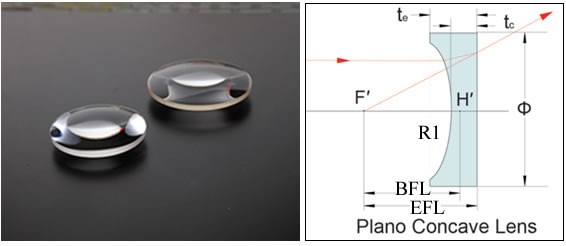

12.7 -15/-30/-47/-70 平凹 1050-180

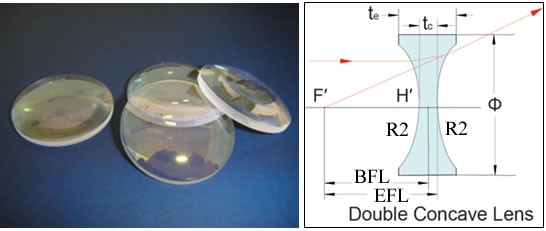

16 -20/-30/-37/-47/-70 平凹/双凹 1050-180
20 -30/-100 平凹 1050-180

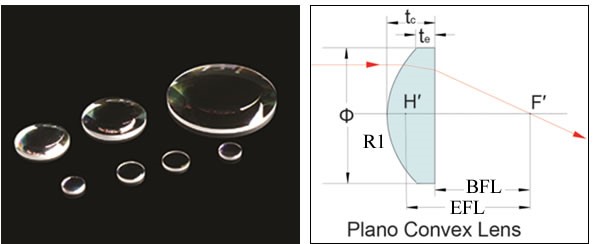

BK7平凸透镜

BK7平凸透镜

  • 材料:BK7

  • 直径公差:+0/-0.1mm

  • 厚度公差:±0.2mm

  • 平整度:λ/4 @632.8nm

  • 有效孔径:90%

  • 焦距公差:+/-1%

  • 光洁度:40-20

  • 侧边:< 0.25mm x 45

  • 设计波长:587.6nm

  • 中心度: 3 arc min

  • 常用镀膜波长:405nm, 468nm, 532nm, 650nm, 808nm, 980nm, 1064nm, 1319nm和1550nm

参数表符号:OD外径;EFL有效焦距;BFL后焦距;R1和R2曲率半径;TC中心厚度;TE 边缘厚度。所有长度单位是mm,产品型号中XXXX指激光波长(单位是nm)。

产品型号 OD EFL BFL R1 TC TE
STJ-XXXX-L4B-06-010 6 10 8.02 5.16 3.00 2.04
STJ-XXXX-L4B-06-015 6 15 13.02 7.76 3.00 2.40
STJ-XXXX-L4B-06-020 6 20 18.04 10.43 3.00 2.56
STJ-XXXX-L4B-06-025 6 25 23.02 12.90 3.00 2.65
STJ-XXXX-L4B-06-030 6 30 28.02 15.50 3.00 2.71
STJ-XXXX-L4B-06-036 6 36 34.02 18.62 3.00 2.76
STJ-XXXX-L4B-06-048 6 48 46.02 24.82 3.00 2.82
STJ-XXXX-L4B-06-060 6 60 58.02 31.01 3.00 2.85
STJ-XXXX-L4B-10-015 10 15 12.37 7.76 4.00 2.18
STJ-XXXX-L4B-10-020 10 20 17.71 10.43 3.50 2.22
STJ-XXXX-L4B-10-025 10 25 22.69 12.90 3.50 2.49
STJ-XXXX-L4B-10-030 10 30 28.02 15.50 3.00 2.17
STJ-XXXX-L4B-10-040 10 40 38.02 20.70 3.00 2.39
STJ-XXXX-L4B-10-050 10 50 48.35 25.84 2.50 2.01
STJ-XXXX-L4B-10-075 10 75 73.35 38.73 2.50 2.18
STJ-XXXX-L4B-15-020 15 20 16.41 10.43 5.50 2.32
STJ-XXXX-L4B-15-025 15 25 21.70 12.90 5.00 2.60
STJ-XXXX-L4B-15-030 15 30 27.03 15.50 4.50 2.56
STJ-XXXX-L4B-15-040 15 40 37.37 20.70 4.00 2.59
STJ-XXXX-L4B-15-060 15 60 57.70 31.14 3.50 2.58
STJ-XXXX-L4B-20-030 20 30 26.04 15.50 6.00 2.34
STJ-XXXX-L4B-20-040 20 40 36.71 20.70 5.00 2.42
STJ-XXXX-L4B-20-050 20 50 47.03 25.84 4.50 2.49
STJ-XXXX-L4B-20-080 20 80 77.69 41.34 3.50 2.27
STJ-XXXX-L4B-25-030 25 30 24.39 15.50 8.50 2.17
STJ-XXXX-L4B-25-040 25 40 35.72 20.70 6.50 2.30
STJ-XXXX-L4B-25-050 25 50 46.37 25.84 5.50 2.28
STJ-XXXX-L4B-25-070 25 70 67.03 36.14 4.50 2.27
STJ-XXXX-L4B-25-100 25 100 97.36 51.69 4.00 2.47
STJ-XXXX-L4B-25-150 25 150 147.69 77.52 3.50 2.49
STJ-XXXX-L4B-30-040 30 40 34.40 20.70 8.50 2.06
STJ-XXXX-L4B-30-050 30 50 45.39 25.84 7.00 2.20
STJ-XXXX-L4B-30-070 30 70 66.04 36.14 6.00 2.74
STJ-XXXX-L4B-30-100 30 100 96.70 51.69 5.00 2.78
STJ-XXXX-L4B-30-150 30 150 147.36 77.52 4.00 2.53
STJ-XXXX-L4B-30-180 30 180 177.69 93.02 3.50 2.28
STJ-XXXX-L4B-36-050 36 50 43.74 25.84 9.50 2.20
STJ-XXXX-L4B-36-080 36 80 75.38 41.34 7.00 2.88
STJ-XXXX-L4B-36-100 36 100 96.05 51.69 6.00 2.76
STJ-XXXX-L4B-36-120 36 120 116.70 62.00 5.00 2.33
STJ-XXXX-L4B-36-150 36 150 147.03 77.52 4.50 2.38
STJ-XXXX-L4B-36-180 36 180 177.36 93.02 4.00 2.24
STJ-XXXX-L4B-36-220 36 220 217.37 113.83 4.00 2.57
STJ-XXXX-L4B-40-040 40 50 42.42 25.84 11.50 2.02
STJ-XXXX-L4B-40-080 40 80 75.05 41.34 7.50 2.34
STJ-XXXX-L4B-40-100 40 100 95.72 51.69 6.50 2.47
STJ-XXXX-L4B-40-120 40 120 116.04 62.00 6.00 2.69
STJ-XXXX-L4B-40-150 40 150 146.70 77.52 5.00 2.38
STJ-XXXX-L4B-40-180 40 180 177.03 93.02 4.50 2.32
STJ-XXXX-L4B-40-220 40 220 217.37 113.83 4.00 2.23
STJ-XXXX-L4B-42-060 42 60 52.78 31.14 11.00 2.85
STJ-XXXX-L4B-42-080 42 80 74.40 41.34 8.50 2.77
STJ-XXXX-L4B-42-100 42 100 95.39 51.69 7.00 2.54
STJ-XXXX-L4B-42-120 42 120 116.04 62.00 6.00 2.34
STJ-XXXX-L4B-42-180 42 180 175.65 77.52 5.50 2.60
STJ-XXXX-L4B-42-220 42 220 215.97 93.02 5.00 2.60
STJ-XXXX-L4B-42-300 42 300 295.96 113.83 4.50 2.55
STJ-XXXX-L4B-50-075 50 75 67.41 38.73 11.50 2.35
STJ-XXXX-L4B-50-100 50 100 94.07 51.69 9.00 2.55
STJ-XXXX-L4B-50-125 50 125 120.06 64.60 7.50 2.47
STJ-XXXX-L4B-50-150 50 150 145.39 77.52 7.00 2.86
STJ-XXXX-L4B-50-175 50 175 171.04 90.44 6.00 2.48
STJ-XXXX-L4B-50-220 50 220 216.38 113.83 5.50 2.72
STJ-XXXX-L4B-50-300 50 300 297.03 155.04 4.50 2.47
STJ-XXXX-L4B-50-400 50 400 397.36 206.67 4.00 2.48

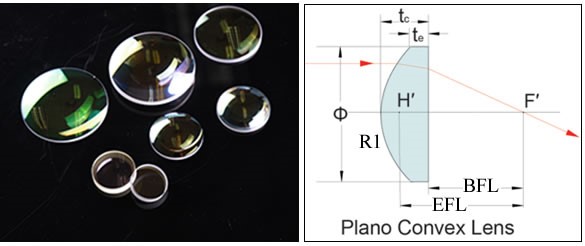

石英平凸透镜

石英平凸透镜

Part No. OD EFL BFL R1 TC TE
STJ-XXXX-L4J-06-010 6 10 7.62 4.61 3.50 2.39
STJ-XXXX-L4J-06-015 6 15 12.94 6.86 3.00 2.31
STJ-XXXX-L4J-06-020 6 20 17.95 9.19 3.00 2.50
STJ-XXXX-L4J-06-025 6 25 22.95 11.48 3.00 2.60
STJ-XXXX-L4J-06-030 6 30 27.94 13.76 3.00 2.67
STJ-XXXX-L4J-06-036 6 36 33.95 16.52 3.00 2.73
STJ-XXXX-L4J-06-048 6 48 45.95 22.03 3.00 2.79
STJ-XXXX-L4J-06-060 6 60 58.29 27.54 2.50 2.34
STJ-XXXX-L4J-10-015 10 15 11.91 6.86 4.50 2.34
STJ-XXXX-L4J-10-020 10 20 17.26 9.19 4.00 2.52
STJ-XXXX-L4J-10-025 10 25 22.60 11.48 3.50 2.35
STJ-XXXX-L4J-10-030 10 30 27.61 13.76 3.50 2.56
STJ-XXXX-L4J-10-040 10 40 37.94 18.33 3.00 2.31
STJ-XXXX-L4J-10-050 10 50 47.95 22.98 3.00 2.45
STJ-XXXX-L4J-10-075 10 75 72.94 34.36 3.00 2.63
STJ-XXXX-L4J-15-020 15 20 15.55 9.19 6.50 2.62
STJ-XXXX-L4J-15-025 15 25 21.23 11.48 5.50 2.71
STJ-XXXX-L4J-15-030 15 30 26.57 13.76 5.00 2.78
STJ-XXXX-L4J-15-040 15 40 37.26 18.33 4.00 2.40
STJ-XXXX-L4J-15-060 15 60 57.60 27.54 3.50 2.46
STJ-XXXX-L4J-20-030 20 30 25.20 13.76 7.00 2.69
STJ-XXXX-L4J-20-035 20 35 30.89 16.05 6.00 2.50
STJ-XXXX-L4J-20-040 20 40 36.23 18.33 5.50 2.53
STJ-XXXX-L4J-20-050 20 50 46.58 22.98 5.00 2.71
STJ-XXXX-L4J-20-080 20 80 77.25 36.64 4.00 2.61
STJ-XXXX-L4J-25-030 25 30 22.80 13.76 10.50 2.49
STJ-XXXX-L4J-25-040 25 40 34.86 18.33 7.50 2.58
STJ-XXXX-L4J-25-050 25 50 45.90 22.98 6.00 2.31
STJ-XXXX-L4J-25-070 25 70 66.58 32.14 5.00 2.47
STJ-XXXX-L4J-25-100 25 100 96.92 45.85 4.50 2.76
STJ-XXXX-L4J-25-150 25 150 147.61 68.80 3.50 2.35
STJ-XXXX-L4J-30-040 30 40 33.14 18.33 10.00 2.21
STJ-XXXX-L4J-30-050 30 50 44.53 22.98 8.00 2.43
STJ-XXXX-L4J-30-070 30 70 65.89 32.14 6.00 2.28
STJ-XXXX-L4J-30-100 30 100 96.57 45.85 5.00 2.48
STJ-XXXX-L4J-30-150 30 150 147.26 68.80 4.00 2.34
STJ-XXXX-L4J-30-180 30 180 177.26 82.53 4.00 2.63
STJ-XXXX-L4J-36-050 36 50 42.48 22.98 11.00 2.30
STJ-XXXX-L4J-36-080 36 80 74.99 36.64 7.30 2.57
STJ-XXXX-L4J-36-100 36 100 95.89 45.85 6.00 2.32
STJ-XXXX-L4J-36-120 36 120 116.23 55.00 5.50 2.47
STJ-XXXX-L4J-36-150 36 150 146.57 68.80 5.00 2.60
STJ-XXXX-L4J-36-180 36 180 176.92 82.53 4.50 2.51
STJ-XXXX-L4J-36-220 36 220 217.26 100.89 4.00 2.38
STJ-XXXX-L4J-40-050 40 50 40.42 22.98 14.00 2.33
STJ-XXXX-L4J-40-080 40 80 74.17 36.64 8.50 2.56
STJ-XXXX-L4J-40-100 40 100 95.21 45.85 7.00 2.41
STJ-XXXX-L4J-40-120 40 120 115.89 55.00 6.00 2.23
STJ-XXXX-L4J-40-150 40 150 146.23 68.80 5.50 2.53
STJ-XXXX-L4J-40-180 40 180 176.57 82.53 5.00 2.54
STJ-XXXX-L4J-40-220 40 220 216.92 100.89 4.50 2.50
STJ-XXXX-L4J-42-080 42 80 73.82 36.64 9.00 2.38
STJ-XXXX-L4J-42-100 42 100 94.79 45.85 7.60 2.51
STJ-XXXX-L4J-42-120 42 120 115.20 55.00 7.00 2.83
STJ-XXXX-L4J-42-150 42 150 145.89 68.80 6.00 2.72
STJ-XXXX-L4J-42-180 42 180 176.57 82.53 5.00 2.28
STJ-XXXX-L4J-42-220 42 220 216.85 100.89 4.60 2.39
STJ-XXXX-L4J-42-300 42 300 297.26 137.72 4.00 2.39
STJ-XXXX-L4J-50-125 50 125 119.17 57.31 8.50 2.76
STJ-XXXX-L4J-50-150 50 150 145.20 68.80 7.00 2.30
STJ-XXXX-L4J-50-175 50 175 170.54 80.25 6.50 2.51
STJ-XXXX-L4J-50-220 50 220 215.89 100.89 6.00 2.85
STJ-XXXX-L4J-50-300 50 300 296.58 137.72 5.00 2.71
STJ-XXXX-L4J-50-400 50 400 397.26 183.68 4.00 2.29

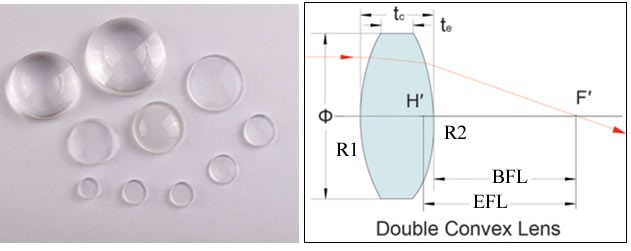

BK7双凸透镜

BK7双凸透镜

产品型号 OD EFL BFL R1=R2 TC TE
STJ-XXXX-L2B-06-012 6 12 11.22 12.00 2.30 1.54
STJ-XXXX-L2B-06-018 6 18 17.19 18.19 2.40 1.90
STJ-XXXX-L2B-06-024 6 24 23.20 24.39 2.40 2.03
STJ-XXXX-L2B-06-030 6 30 29.16 30.58 2.50 2.20
STJ-XXXX-L2B-06-036 6 36 35.30 36.85 2.10 1.86
STJ-XXXX-L2B-10-015 10 15 13.62 14.79 4.00 2.26
STJ-XXXX-L2B-10-020 10 20 18.81 20.06 3.50 2.23
STJ-XXXX-L2B-10-030 10 30 28.82 30.40 3.50 2.67
STJ-XXXX-L2B-10-040 10 40 39.20 40.93 2.40 1.79
STJ-XXXX-L2B-10-050 10 50 49.10 51.22 2.70 2.21
STJ-XXXX-L2B-10-080 10 80 78.97 82.16 3.10 2.80
STJ-XXXX-L2B-15-025 15 25 23.50 25.07 4.40 2.10
STJ-XXXX-L2B-15-030 15 30 28.65 30.31 4.00 2.11
STJ-XXXX-L2B-15-040 15 40 38.78 40.71 3.65 2.26
STJ-XXXX-L2B-15-060 15 60 58.90 61.45 3.30 2.38
STJ-XXXX-L2B-15-080 15 80 78.97 82.16 3.10 2.41
STJ-XXXX-L2B-15-100 15 100 98.92 102.80 3.25 2.70
STJ-XXXX-L2B-20-030 20 30 28.16 30.06 5.40 1.98
STJ-XXXX-L2B-20-040 20 40 38.49 40.56 4.50 2.00
STJ-XXXX-L2B-20-055 20 55 53.93 56.30 3.20 1.41
STJ-XXXX-L2B-20-070 20 70 68.64 71.65 4.10 2.70
STJ-XXXX-L2B-20-080 20 80 78.97 82.16 3.10 1.88
STJ-XXXX-L2B-20-100 20 100 98.92 102.80 3.25 2.27
STJ-XXXX-L2B-30-040 30 40 37.39 40.00 7.65 1.81
STJ-XXXX-L2B-30-055 30 55 52.92 55.77 6.20 2.09
STJ-XXXX-L2B-30-070 30 70 67.94 71.29 6.15 2.96
STJ-XXXX-L2B-30-080 30 80 78.01 81.66 5.95 3.17
STJ-XXXX-L2B-30-100 30 100 98.47 102.57 4.60 2.39
STJ-XXXX-L2B-30-120 30 120 118.37 123.19 4.90 3.07
STJ-XXXX-L2B-40-060 40 60 57.13 60.53 8.50 1.70
STJ-XXXX-L2B-40-080 40 80 77.52 81.41 7.40 2.41
STJ-XXXX-L2B-40-100 40 100 97.55 102.09 7.35 3.39
STJ-XXXX-L2B-40-150 40 150 148.31 154.17 5.10 2.49
STJ-XXXX-L2B-40-200 40 200 198.30 205.84 5.15 3.20
STJ-XXXX-L2B-40-300 40 300 298.33 309.22 5.05 3.76
STJ-XXXX-L2B-50-080 50 80 76.20 80.72 11.25 3.31
STJ-XXXX-L2B-50-120 50 120 117.48 122.73 7.55 2.40
STJ-XXXX-L2B-50-180 50 180 178.36 185.20 4.95 1.56
STJ-XXXX-L2B-50-250 50 250 248.18 257.46 5.50 3.07
STJ-XXXX-L2B-50-300 50 300 298.33 309.22 5.05 3.03

石英双凸透镜

石英双凸透镜

产品型号 OD EFL BFL R1=R2 TC TE
STJ-XXXX-L2J-06-011 6 12 10.96 10.53 2.90 2.03
STJ-XXXX-L2J-06-018 6 18 17.01 16.05 2.80 2.23
STJ-XXXX-L2J-06-024 6 24 23.14 21.61 2.45 2.03
STJ-XXXX-L2J-06-030 6 30 29.29 27.18 2.05 1.72
STJ-XXXX-L2J-10-015 10 15 13.71 13.16 3.60 1.63
STJ-XXXX-L2J-10-020 10 20 18.61 17.70 3.90 2.46
STJ-XXXX-L2J-10-030 10 30 28.90 27.00 3.15 2.22
STJ-XXXX-L2J-10-040 10 40 39.05 36.23 2.75 2.06
STJ-XXXX-L2J-12-020 12 20 18.48 17.64 4.27 2.17
STJ-XXXX-L2J-12-025 12 25 23.61 22.28 3.95 2.30
STJ-XXXX-L2J-12-030 12 30 28.90 27.00 3.15 1.80
STJ-XXXX-L2J-12-040 12 40 39.03 36.23 2.80 1.80
STJ-XXXX-L2J-15-020 15 20 18.09 17.46 5.30 1.91
STJ-XXXX-L2J-15-025 15 25 23.33 22.16 4.70 2.08
STJ-XXXX-L2J-15-030 15 30 28.56 26.84 4.10 1.96
STJ-XXXX-L2J-15-040 15 40 38.75 36.10 3.60 2.02
STJ-XXXX-L2J-15-050 15 50 48.89 45.33 3.20 1.95
STJ-XXXX-L2J-20-025 20 25 22.22 21.65 7.65 2.75
STJ-XXXX-L2J-20-030 20 30 27.74 26.47 6.35 2.43
STJ-XXXX-L2J-20-035 20 35 33.15 31.24 5.25 1.96
STJ-XXXX-L2J-20-040 20 40 38.12 35.81 5.35 2.50
STJ-XXXX-L2J-20-050 20 50 48.57 45.19 4.10 1.86
STJ-XXXX-L2J-20-075 20 75 73.84 68.23 3.35 1.88
STJ-XXXX-L2J-25-040 25 40 37.63 35.59 6.70 2.16
STJ-XXXX-L2J-25-050 25 50 48.11 44.98 5.40 1.86
STJ-XXXX-L2J-25-060 25 60 58.24 54.20 5.05 2.13
STJ-XXXX-L2J-25-075 25 75 73.49 68.07 4.35 2.03
STJ-XXXX-L2J-25-080 25 80 78.56 72.69 4.15 1.98
STJ-XXXX-L2J-25-100 25 100 98.58 91.03 4.10 2.38
STJ-XXXX-L2J-25-120 25 120 118.66 109.40 3.90 2.47
STJ-XXXX-L2J-25-150 25 150 149.07 137.09 2.70 1.56
STJ-XXXX-L2J-254-040 25.4 40 37.73 35.63 6.42 1.74
STJ-XXXX-L2J-254-050 25.4 50 48.12 44.98 5.37 1.71
STJ-XXXX-L2J-254-060 25.4 60 58.24 54.20 5.05 2.03
STJ-XXXX-L2J-254-075 25.4 75 73.50 68.07 4.35 1.95
STJ-XXXX-L2J-254-080 25.4 80 78.40 72.61 4.63 2.39
STJ-XXXX-L2J-254-100 25.4 100 98.58 91.03 4.10 2.32
STJ-XXXX-L2J-254-120 25.4 120 118.66 109.40 3.90 2.42
STJ-XXXX-L2J-254-150 25.4 150 149.07 137.09 2.70 1.52

平凹透镜

平凹透镜

产品型号 OD EFL BFL R1 TC TE
STJ-XXXX-L3B-06-012 6 -12 -12.99 -6.20 1.50 2.27
STJ-XXXX-L3B-06-018 6 -18 -19.32 -9.30 2.00 2.50
STJ-XXXX-L3B-06-024 6 -24 -25.19 -12.40 1.80 2.17
STJ-XXXX-L3B-06-030 6 -30 -31.32 -15.50 2.00 2.29
STJ-XXXX-L3B-06-040 6 -40 -41.25 -20.67 1.90 2.12
STJ-XXXX-L3B-10-016 10 -16 -17.05 -8.27 1.60 3.28
STJ-XXXX-L3B-10-020 10 -20 -20.99 -10.34 1.50 2.79
STJ-XXXX-L3B-10-030 10 -30 -31.05 -15.50 1.60 2.43
STJ-XXXX-L3B-10-035 10 -35 -36.19 -18.09 1.80 2.50
STJ-XXXX-L3B-10-040 10 -40 -41.32 -20.67 2.00 2.61
STJ-XXXX-L3B-15-020 15 -20 -20.99 -10.34 1.50 4.72
STJ-XXXX-L3B-15-035 15 -35 -36.19 -18.09 1.80 3.43
STJ-XXXX-L3B-15-040 15 -40 -40.99 -20.67 1.50 2.91
STJ-XXXX-L3B-15-050 15 -50 -51.32 -25.84 2.00 3.11
STJ-XXXX-L3B-15-060 15 -60 -61.32 -31.01 2.00 2.92
STJ-XXXX-L3B-15-15480 15 -15480 -15482.6 -8000.06 4.00 4.00
STJ-XXXX-L3B-20-030 20 -30 -31.05 -15.50 1.60 5.26
STJ-XXXX-L3B-20-040 20 -40 -40.99 -20.67 1.50 4.08
STJ-XXXX-L3B-20-050 20 -50 -51.05 -25.84 1.60 3.61
STJ-XXXX-L3B-20-080 20 -80 -81.32 -41.34 2.00 3.23
STJ-XXXX-L3B-20-100 20 -100 -101.45 -51.68 2.20 3.18
STJ-XXXX-L3B-20-3870 20 -3870 -3872.64 -2000.02 4.00 4.02
STJ-XXXX-L3B-20-7740 20 -7740 -7742.64 -4000.03 4.00 4.01
STJ-XXXX-L3B-20-19350 20 -19350 -19353.3 -10000.1 5.00 5.00
STJ-XXXX-L3B-25-040 25 -40 -40.99 -20.67 1.50 5.71
STJ-XXXX-L3B-25-050 25 -50 -50.99 -25.84 1.50 4.72
STJ-XXXX-L3B-25-060 25 -60 -61.05 -31.01 1.60 4.23
STJ-XXXX-L3B-25-080 25 -80 -81.45 -41.34 2.20 4.13
STJ-XXXX-L3B-25-100 25 -100 -101.71 -51.68 2.60 4.13
STJ-XXXX-L3B-40-060 40 -60 -60.99 -31.01 1.50 8.81
STJ-XXXX-L3B-40-080 40 -80 -81.05 -41.34 1.60 6.76
STJ-XXXX-L3B-40-100 40 -100 -101.19 -51.68 1.80 5.83

石英平凹透镜

石英平凹透镜

产品型号 OD EFL BFL R1 TC TE
STJ-XXXX-L3J-06-012 6 -12 -13.10 -5.50 1.60 2.49
STJ-XXXX-L3J-06-018 6 -18 -19.37 -8.25 2.00 2.56
STJ-XXXX-L3J-06-024 6 -24 -25.37 -11.00 2.00 2.42
STJ-XXXX-L3J-06-035 6 -35 -36.51 -16.04 2.20 2.48
STJ-XXXX-L3J-10-018 10 -18 -19.37 -8.25 2.00 3.69
STJ-XXXX-L3J-10-024 10 -24 -25.37 -11.00 2.00 3.20
STJ-XXXX-L3J-10-030 10 -30 -31.37 -13.75 2.00 2.94
STJ-XXXX-L3J-10-040 10 -40 -41.51 -18.34 2.20 2.89
STJ-XXXX-L3J-127-020 12.7 -20 -21.10 -9.17 1.60 4.16
STJ-XXXX-L3J-127-024 12.7 -24 -25.37 -11.00 2.00 4.02
STJ-XXXX-L3J-127-030 12.7 -30 -31.65 -13.75 2.40 3.95
STJ-XXXX-L3J-127-040 12.7 -40 -41.71 -18.34 2.50 3.63
STJ-XXXX-L3J-127-050 12.7 -50 -52.06 -22.92 3.00 3.90
STJ-XXXX-L3J-20-030 20 -30 -31.10 -13.75 1.60 5.91
STJ-XXXX-L3J-20-040 20 -40 -41.10 -18.34 1.60 4.57
STJ-XXXX-L3J-20-050 20 -50 -51.37 -22.92 2.00 4.30
STJ-XXXX-L3J-20-075 20 -75 -76.78 -34.38 2.60 4.09
STJ-XXXX-L3J-20-100 20 -100 -102.06 -45.84 3.00 4.10
STJ-XXXX-L3J-20-4363 20 -4363 -4366.4 -2000.0 5.00 5.03
STJ-XXXX-L3J-254-035 25.4 -35 -36.03 -16.04 1.50 7.74
STJ-XXXX-L3J-254-040 25.4 -40 -41.10 -18.34 1.60 6.71
STJ-XXXX-L3J-254-050 25.4 -50 -51.23 -22.92 1.80 5.64
STJ-XXXX-L3J-254-075 25.4 -75 -76.23 -34.38 1.80 4.23
STJ-XXXX-L3J-254-100 25.4 -100 -101.71 -45.84 2.50 4.29
STJ-XXXX-L3J-508-100 50.8 -100 -101.23 -45.84 1.80 9.48
STJ-XXXX-L3J-508-150 50.8 -150 -151.10 -68.76 1.60 6.46
STJ-XXXX-L3J-508-250 50.8 -250 -251.37 -114.60 2.00 4.85

BK7双凹透镜

BK7双凹透镜

产品型号 OD EFL BFL R1=R2 TC TE
STJ-XXXX-L1B-06-012 6 -12 -12.87 -12.85 2.72 3.43
STJ-XXXX-L1B-06-018 6 -18 -18.76 -19.00 2.37 2.85
STJ-XXXX-L1B-06-024 6 -24 -24.72 -25.18 2.22 2.58
STJ-XXXX-L1B-12-018 12 -18 -18.76 -19.00 2.37 4.31
STJ-XXXX-L1B-12-024 12 -24 -24.72 -25.18 2.22 3.67
STJ-XXXX-L1B-12-030 12 -30 -30.56 -31.30 1.72 2.88
STJ-XXXX-L1B-20-030 20 -30 -30.56 -31.30 1.72 5.00
STJ-XXXX-L1B-20-040 20 -40 -40.49 -41.60 1.50 3.94
STJ-XXXX-L1B-20-060 20 -60 -60.69 -62.37 2.10 3.71
STJ-XXXX-L1B-25-040 25 -40 -40.49 -41.60 1.50 5.35
STJ-XXXX-L1B-25-060 25 -60 -60.69 -62.37 2.10 4.63
STJ-XXXX-L1B-25-080 25 -80 -80.70 -83.05 2.14 4.03
STJ-XXXX-L1B-40-050 40 -50 -50.65 -52.02 2.00 10.00
STJ-XXXX-L1B-40-070 40 -70 -70.83 -72.78 2.53 8.13
STJ-XXXX-L1B-50-100 50 -100 -100.82 -103.79 2.51 8.62
STJ-XXXX-L1B-50-200 50 -200 -200.83 -207.15 2.52 5.55

石英双凹透镜

石英双凹透镜

产品型号 OD EFL BFL R1=R2 TC TE
STJ-XXXX-L1J-06-012 6 -12 -12.64 -11.30 1.92 2.73
STJ-XXXX-L1J-06-030 6 -30 -30.64 -27.80 1.90 2.22
STJ-XXXX-L1J-10-020 10 -20 -20.62 -18.62 1.83 3.20
STJ-XXXX-L1J-10-030 10 -30 -30.64 -27.80 1.90 2.81
STJ-XXXX-L1J-127-025 12.7 -25 -25.55 -23.17 1.61 3.38
STJ-XXXX-L1J-127-035 12.7 -35 -35.64 -32.38 1.87 3.13
STJ-XXXX-L1J-20-040 20 -40 -40.68 -36.98 2.00 4.76
STJ-XXXX-L1J-20-050 20 -50 -50.58 -46.11 1.71 3.90
STJ-XXXX-L1J-254-045 25.4 -45 -45.71 -41.58 2.08 6.05
STJ-XXXX-L1J-254-060 25.4 -60 -60.68 -55.32 2.00 4.96

BK7平凸柱面镜

BK7平凸柱面镜

直径 (mm) 有效焦距 (mm) 波长 (nm)
Ø6 45 1064
Ø36 200 980
Ø36 400 980
25.4X25.4 250 980
50X30 60 980

可以根据客户要求定制。

镀膜

常用激光透镜的波长为266nm, 355nm, 405nm, 468nm, 532nm, 650nm, 808nm, 980nm, 1064nm, 1319nm, 1550nm, 10.6um,都用介质增透膜。

1). 0º AOI AR单一激光波长镀膜

设计波长: AR@266nm,AR@355nm, AR@405nm, AR@468nm, AR@532nm, AR@650nm, AR@808nm, AR@980nm, AR@1064nm, AR@1319nm, AR@1550nm, AR@2100nm

反射:R< 0.02%

2). 0º AOI AR双激光波长镀膜

设计波长:AR@532nm 和 1064nm,1064nm R< 0.2%, 532nm R< 0.5%

3). 0º AOI AR双激光波长镀膜

设计波长:AR@808nm和1064nm,1064nm R <  0.2%, 808nm R <  0.5%

4). 0º AOI AR双激光波长镀膜

设计波长:AR@1064nm和1319nm,1064nmR< 0.2%,1319nm R< 0.5%

5). 0º~ 45º AOI 高反单一波长镀膜

设计波长:HR@266nm, HR@355nm, HR@405nm, HR@468nm, HR@532nm, HR@650nm, HR@808nm, HR@980nm, HR@1064nm, HR@1319nm,HR@1550nm, 反射率R> 99.9%

6). 0º AOI 高反双波长镀膜

设计波长:HR@532nm和1064nm, HT@808nm, 1064nm R> 99.8%,532nm R> 99.5%

7). 0º AOI高反三波长镀膜

设计波长:355nm和532nm和1064nm, 355nm 532nm,1064nm, R> 99.5%

8). 0º AOI PR单一波长镀膜分束

设计波长:PR@1064nm; 半透T=5%~95% ±2%

9). 0º AOI长波/短波通光片

设计波长:HR@1064nm,R> 99.8%; HT@808nm T> 99% (AR@808nm,双面)

设计波长:HR@808nm,R> 99.8; HT@1064nm T> 99% (AR@1064nm,双面)

10). 0º AOI短波通光片

设计波长:HR@1064nm, R> 99.8%; HT@532nm T> 98% (AR@532nm,双面)

11). 0º AOI长波通光片

设计波长:HR@266nm ,R> 99.9%; HT@532nm T> 99% (AR@532nm,双面)

12). 0º AOI长波通光片

设计波长:HR@355nm,R> 99.8%; HT@532nm 和 @1064nm T> 98%; (AR@1064nm, AR@532nm, 双面)

13). 0º AOI短波通光片 Laser Line SHORTPASS

设计波长:HR@946nm, R> 99.8%; HT@810nm, T> 99% (AR@810nm, 双面)

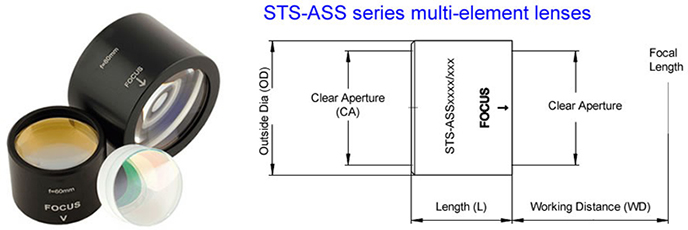

多片镜透镜(聚焦镜)

多片镜透镜(聚焦镜)

产品型号 λ[nm] FL [mm] 材料 OD [mm] CA[mm] 长度[mm] WD [mm] 镜片数量
STS-ASS5185/199 266 81.9 石英 40 35 15 73.4 2
STS-ASS2550/199 266 44.3 石英 30 23 20 40.4 2
STS-ASS2020/199 266 23.8 石英 25 12.5 17 17.1 3
STS-ASS2060/199 266 57.3 石英 40 34 30 43.9 3
STS-ASS5120/199 266 109 石英 48 40 20 99.1 2
STS-ASS2060/075 355 60 石英 40 34 30 46.5 3
STS-ASS2550/075 355 48.2 石英 30 23 20 43.5 2
STS-ASS5185/075 355 86.4 石英 40 31 15 77.6 2
STS-ASS2020/075 355 25.4 石英 25 12.5 17 17.9 3
STS-ASS5120/075 355 114.4 石英 48 40 20 104.4 2
STS-ASS2060/292 515-545 62.4 石英 40 34 32 47.9 3
STS-ASS2550/292 515-545 49.3 石英 30 23 20 45.7 2
STS-ASS2560/292 515-545 58.4 石英 30 23 24.5 51.8 2
STS-ASS5300/292 515-545 99.7 石英 41 20 16 86.7 3
STS-ASS2020/292 515-545 24.5 石英 25 12.5 13.5 19.3 3
STS-ASS6200/292 515-545 196.1 石英 54 48 15 188.5 2
STS-ASS5370/292 515-545 174.5 石英 41 35 24 174.1 2
STS-ASS6151/292 515-545 146.3 石英 56 50 20 135 2
STS-ASS1030/121 532 29.8 玻璃 20 14 11 25 2
STS-ASS0177/121 532 76.6 玻璃 41 35 24 64 3
STS-ASS0115/121 532 89.4 玻璃 41 35 32 88.7 3
STS-ASS6001/121 532 76.1 玻璃 54 48 36 63.9 3
STS-ASS5340/121 532 88.9 玻璃 41 30 21.8 64.4 2
STS-ASS5320/121 532 114.5 玻璃 41 31 15.5 105.8 2
STS-ASS5151/328 1030-1090 148.9 石英 54 48 43 152.3 2
STS-ASS6200/328 1030-1090 200.9 石英 54 48 15 193.2 2
STS-ASS6101/328 1030-1090 100.6 石英 56 50 22.5 86.3 2
STS-ASS1093/328 1030-1090 100.6 石英 48 42 22 86.1 2
STS-ASS5201/328 1030-1090 200.1 石英 75 68 23 186.2 2
STS-ASS5170/328 1030-1090 171.1 石英 50 45 43 175.2 2
STS-ASS5152/328 1030-1090 153.4 石英 75 68 34 129.2 2
STS-ASS2020/328 1030-1090 25.1 石英 25 12.5 13.5 19.8 3
STS-ASS6120/328 1030-1090 120.1 石英 54 48.5 59 112.6 2
STS-ASS5150/328 1030-1090 148.9 石英 50 45 43 152.6 2
STS-ASS5120/328 1030-1090 128.7 石英 48 40 20 110.8 2
STS-ASS2060/328 1030-1090 63.9 石英 40 34 32 49.3 3
STS-ASS2250/328 1030-1090 249.8 石英 54 50 20 247.5 2
STS-ASS5080/328 1030-1090 79.6 石英 54 48 36 60.2 3
STS-ASS2560/328 1030-1090 59.9 石英 30 23 22.5 57.5 2
STS-ASS2550/328 1030-1090 49.7 石英 30 23 20 48.4 2

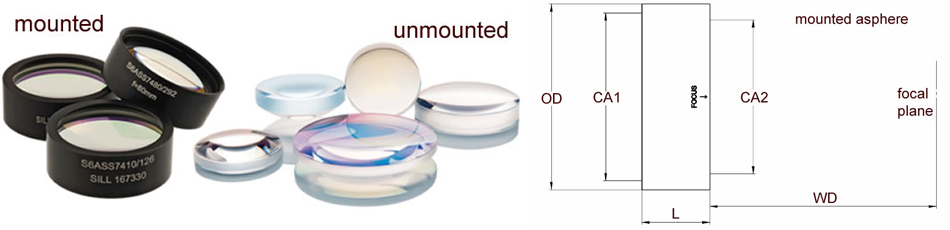

非球面镜

非球面镜的一个最大的优势就是在需要透镜系统的情况下,它这一个光学元件就能完成成像任务。非球面镜的主要优点是:

  • 球面像差小

  • 重量轻

  • 传输快

  • 无内影

高纯石英材料和低吸收镀膜的结合降低了焦距和工作距离的热效应导致的位移。

非球面镜的另一个应用是可根据强度分布或相位进行光束整形。它可将高斯轮廓转换为平顶轮廓。对于材料加工,它的优点是可使材料表面的去除更均匀,去除区和周围材料之间的边界更陡,由此而产生的热效应影响的区域更小。

我们可生产直径高达200毫米的非球面镜。基于我们的测量装置(干涉波前测试、触觉和光学三维轮廓术)我们根据几何结构可确保0.15μm PV(fWD)和RMSi< 0.025μm的表面质量。还可测量高达21mm的矢状高度,能够在一定直径下生产和测试非常陡峭的半径。

我们的产品范围包括可用于聚焦和准直的焦距从20-400mm的未装配和已装配的精密非球面镜。也可根据客户的特殊要求和形状提供定制。我们的产品技术参数和性能如下:

尺寸

  • 直径: 12-200mm

  • 直径误差: ±0.01mm

  • 厚度误差: ±0.025mm

表面形状和误差(ISO 10110; @546nm)

  • 曲率凹半径(局部): > 35mm

  • 矢状偏差(PV): < 0.5fr (~0.137um)

  • 不规则性(PV): < 0.5fr (~0.137um)

  • 旋转不变性(PV): < 0.2gr (~0.055um)

  • RMSi: < 0.1fr )~0.025um)

  • 中心化(表面间的倾斜角度): < 1arcmin

  • 清洁度/缺陷: 3x0.04 (S/D: 10/5)

材料

  • 所有型号都是熔融石英 (Corning, Heraeus, Nikon, Ohara)

  • 光学玻璃(CDGM, Hoya, Ohara, Schott, …..)

测量方法

  • 触觉二维测量

  • 通过白光干涉法进行2D/3D轮廓测量

  • 干涉波前测量(632.8nm)

非球面镜

型号 波长 [nm] 焦距FL [mm] 材料 OD-Ø [mm] CA1 [mm] L [mm] WD [mm] 装配
STS-ADX0220/328 1030-1090 20.0 fs 25.0 22.5 13.2 13.3 未装配
STS-ADX0230/328 1030-1090 30.0 fs 30.0 27.0 16.0 20.9 未装配
STS-ADX0240/328 1030-1090 40.0 fs 30.0 27.0 15.0 31.3 未装配
STS-ADX0250/328 1030-1090 50.0 fs 30.0 27.0 13.7 42.1 未装配
STS-ADX0260/328 1030-1090 60.0 fs 30.0 27.0 11.3 53.5 未装配
STS-ADX0310/328 1030-1090 100.0 fs 38.1 34.3 11.0 93.7 未装配
STS-ADX0311/328 1030-1090 100.0 fs 30.0 27.0 11.0 93.7 未装配
STS-ADX0312/328 1030-1090 120.0 fs 38.1 34.3 10.3 114.0 未装配
STS-ADX0313/328 1030-1090 120.0 fs 30.0 27.0 10.3 114.0 未装配
STS-ADX0315/328 1030-1090 150.0 fs 38.1 34.3 9.6 144.4 未装配
STS-ADX0316/328 1030-1090 150.0 fs 30.0 27.0 9.6 144.4 未装配
STS-ADX0320/328 1030-1090 200.0 fs 38.1 34.3 8.9 194.8 未装配
STS-ADX0325/328 1030-1090 250.1 fs 38.1 34.3 8.9 245.2 未装配
STS-ADX0330/328 1030-1090 300.0 fs 30.0 34.3 9.0 294.7 未装配
STS-ADX0370/328 1030-1090 71.8 fs 38.1 34.3 11.0 63.6 未装配
STS-ADX0380/328 1030-1090 80.0 fs 38.1 34.3 12.0 73.1 未装配
STS-ADX0381/328 1030-1090 80.0 fs 30.0 27.0 12.0 73.1 未装配
STS-ADX0510/328 1030-1090 100.0 fs 52.0 46.8 17.5 89.8 未装配
STS-ADX0512/328 1030-1090 120.0 fs 52.0 46.8 18.0 109.6 未装配
STS-ADX0515/328 1030-1090 150.0 fs 52.0 46.8 11.0 143.5 未装配
STS-ADX0520/328 1030-1090 200.1 fs 52.0 46.8 8.7 195.0 未装配
STS-ADX0530/328 1030-1090 300.0 fs 52.0 47.0 9.0 294.6 未装配
STS-ADX0540/328 1030-1090 400.0 fs 52.0 48.0 8.5 395.2 未装配
STS-ADX0580/328 1030-1090 80.9 fs 52.0 46.8 17.8 70.4 未装配
STS-ADX4350/373 420-480 50.0 fs 38.1 34.3 14.0 41.8 未装配
STS-ADX4360/373 420-480 60.0 fs 38.1 34.3 12.0 52.9 未装配
STS-ADX4370/373 420-480 70.0 fs 38.1 34.3 11.0 63.5 未装配
STS-ADX4380/373 420-480 80.0 fs 38.1 34.3 10.0 74.1 未装配
S6ASS7410/328 1030-1090 100.0 fs 41.0 37.0 15.0 91.7 未装配
S6ASS7412/328 1030-1090 120.0 fs 41.0 37.0 15.0 111.9 未装配
S6ASS7415/328 1030-1090 150.0 fs 41.0 37.0 15.0 142.2 未装配
S6ASS7420/328 1030-1090 200.0 fs 41.0 37.0 15.0 192.5 未装配
S6ASS7425/328 1030-1090 250.1 fs 41.0 37.0 15.0 242.0 已装配
S6ASS7480/328 1030-1090 80.0 fs 41.0 37.0 15.0 71.3 已装配
S6ASS7510/328 1030-1090 100.0 fs 56.0 50.0 20.0 89.0 已装配
S6ASS7512/328 1030-1090 120.0 fs 56.0 50.0 20.0 108.6 已装配
S6ASS7515/328 1030-1090 150.0 fs 56.0 50.0 20.0 142.2 已装配
S6ASS7520/328 1030-1090 200.1 fs 56.0 50.0 20.0 193.5 已装配
S6ASS7540/328 1030-1090 400.0 fs 56.0 50.0 18.3 393.5 已装配
S6ASS7580/328 1030-1090 80.9 fs 56.0 50.0 20.0 70.0 已装配
S6ASS8411/328 1030-1090 100.0 fs 36.0 28.0 20.5 90.0 已装配
S6ASS8413/328 1030-1090 120.0 fs 36.0 28.0 20.5 110.3 已装配
S6ASS8416/328 1030-1090 150.0 fs 36.0 28.0 20.5 140.6 已装配
S6ASS8420/328 1030-1090 20.0 fs 36.0 23.0 20.5 10.7 已装配
S6ASS8430/328 1030-1090 30.0 fs 36.0 28.0 20.5 18.8 已装配
S6ASS8440/328 1030-1090 40.0 fs 36.0 28.0 20.5 28.5 已装配
S6ASS8450/328 1030-1090 50.0 fs 36.0 28.0 20.5 38.9 已装配
S6ASS8460/328 1030-1090 60.0 fs 36.0 28.0 20.5 50.1 已装配
S6ASS8481/328 1030-1090 80.0 fs 36.0 28.0 20.5 69.6 已装配

离子透镜

离子透镜因其可以储存量子位元(量子位元)以及量子计算机的相关用途,使其成为近年人们越来越感兴趣的研究课题。当然,人们不仅要使用它,而且要通过各种基本实验来详细了解它们的行为。

我们设计了两种透镜,一种只用于观察,一种结合激光聚焦镜来做这些实验。我们可以提供高数值孔径和能应用到特定波长(紫外到红外)的离子透镜。但由于真空冷冻器的尺寸(如窗口厚度)不同,所以每个透镜都必须根据现有条件进行特殊设计。

我们可以根据用户窗口厚度进行调整也可以根据客户的要求来定制研发离子透镜。

分享:
